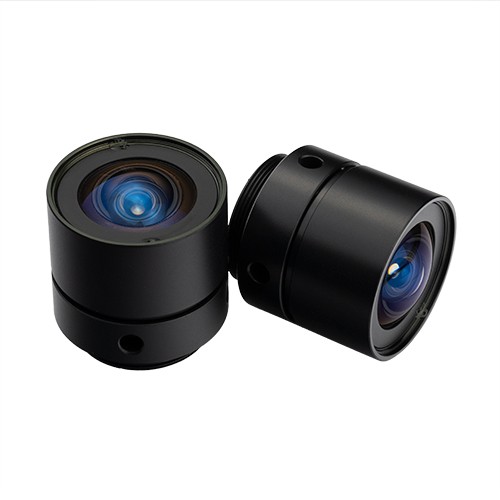

ToF lens for 1/3 inch sensors, f=2.5mm, F1.1

Alaud ToF lens features a super large aperture. The lens is designed with a large aperture, which enables the optical system to collect more light energy and perform very well in low light conditions. The lens is optimized with special optics and has high consistency between center and edge. The products are mainly used for depth measurement, obstacle avoidance, 3D modeling and other fields.

The ToF lens AFIR02510 from Alaud is compatible with board cameras. This NIR lens has a 2.50mm focal length and delivers a 110.9° horizontal field of view at the sensors format of 1/3".

Optical Specifications

Key Features

•    Working wavelength：850nm or 940nm

•    Large aperture：F1.1

•    110.9 ° HFOV

•    Compatible with 1/4"-1/3" format sensors

•    2.50mm fixed focal length

•    Compact size

Applications

•    Depth measurement

•    Obstacle avoidance

•    Biological recognition

•    Sweeping robot

•    3D modeling
